LYNGDORF AUDIO

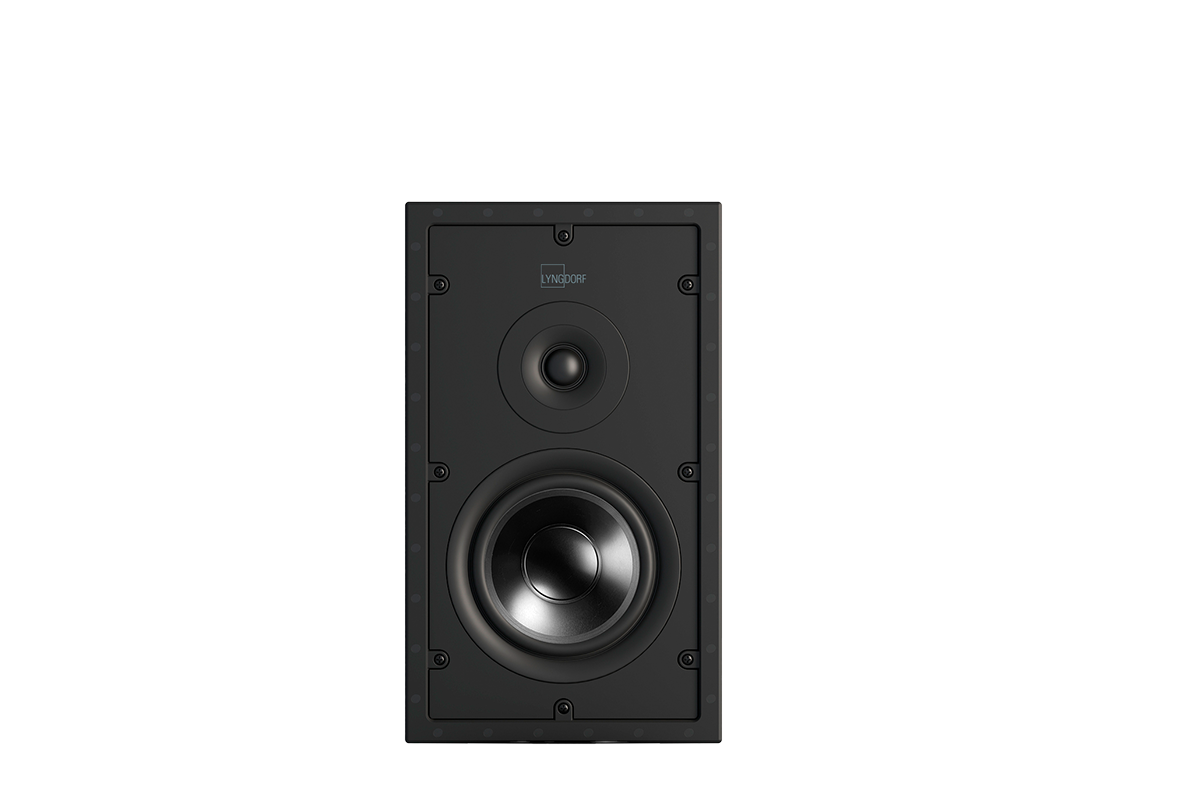

D-6

Space-saving with a coherent sound balance.

The Lyngdorf D-6 is an in-wall alternative to traditional two-way bookshelf or stand mount speakers, delivering a very coherent sound balance and well-integrated bass. It has a rectangular upright design compared to the square D-5, and a lighter, low-profile construction with no pre-mounted MDF enclosure, suitable for lighter walls.

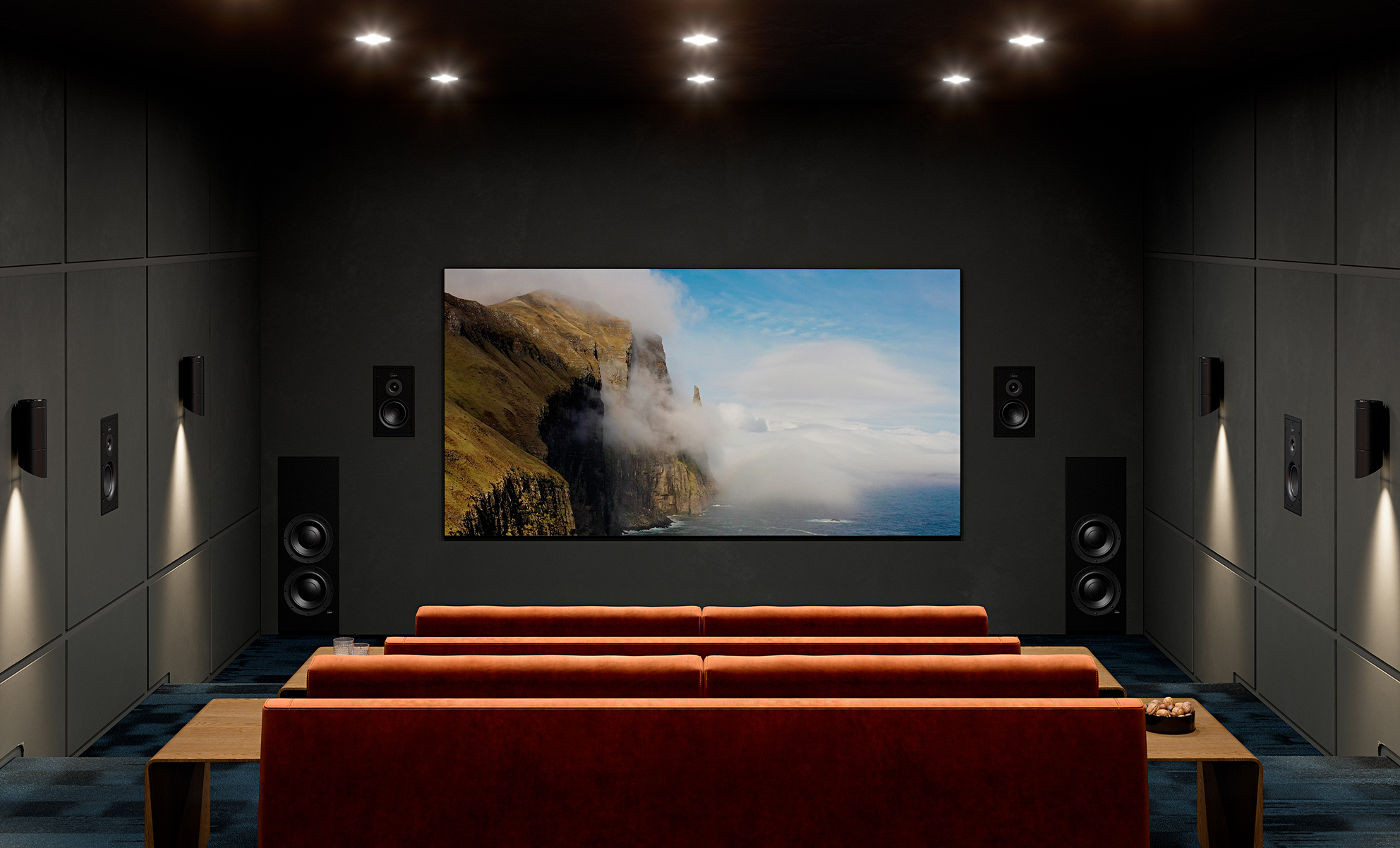

Lyngdorf D-6 custom installation setup

Low-profile and Space-saving Construction

The D-6 comes without the MDF enclosure of the D-5 and D-60 models, allowing a more light, low-profile, and space-saving construction. It still offers a very high sound quality by using high-quality drive-units mounted on a low-resonance MDF baffle.

Coherent Sound Balance & Easy to Drive

The 6.5” / 18cm woofer and the soft dome tweeter mounted on a dense MDF baffle provide the coherent and balanced sound performance known from typical 2-way stand-mount or bookshelf speakers. With a sensitivity of 89dB and a nominal impedance of 6 ohm, the D-6 is very easy to drive for any amplifier. It also allows a high SPL and has a high long-term power handling.

Unique features

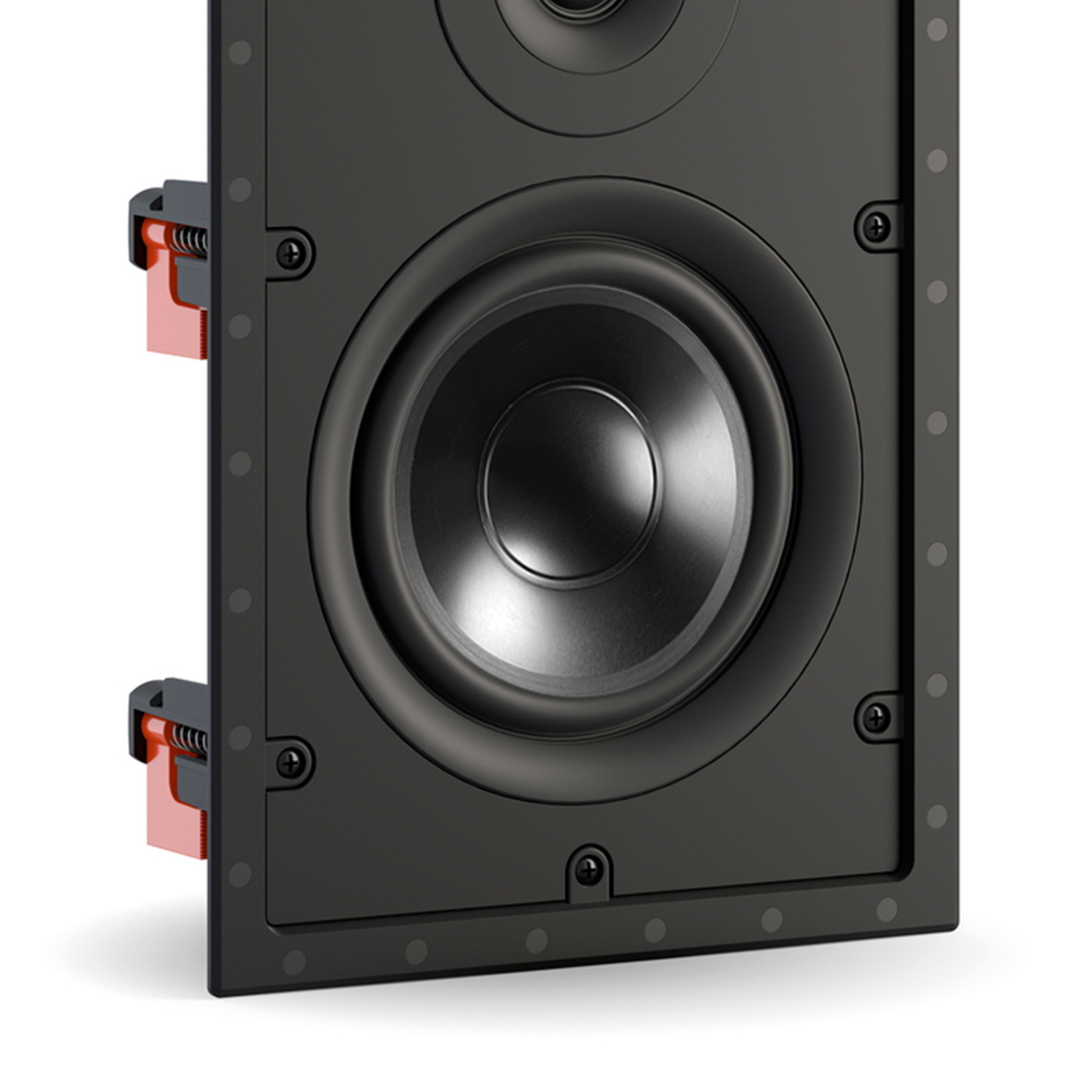

D-6 Unique feature close up

Low-profile and space-saving construction

The D-6 comes without the MDF enclosure of the D-5 and D-60 models, allowing a more light, low-profile, and space-saving construction. It still offers a very high sound quality by using high-quality drive-units mounted on a low-resonance MDF baffle.

Coherent sound balance

The 6.5” / 18cm woofer and the soft dome tweeter mounted on a dense MDF baffle provide the coherent and balanced sound performance known from typical 2-way stand-mount or bookshelf speakers.

Easy to drive

With a sensitivity of 89dB and a nominal impedance of 6 ohm the D-6 is very easy to drive for any amplifier. It also allows a high SPL and has a high long-term power handling.

Specifications

ModelLYNGDORF D-6
DescriptionCustom installation in-wall speaker without enclosure
DriversTweeter: 1 x 28 mm / 1.1” soft dome with large magnet, midrange/woofer: 1 x 180 mm, 35 mm voice coil, aluminum cone, vented magnet, die-cast vented basket
EnclosureOpen back, MDF baffle
Frequency range51 – 22,000 Hz (-3 dB)
Nominal Impedance6 Ohm
Sensitivity89 dB (2.83V/1m)
Power handling150 W
Maximum SPL107 dB
ConnectionsPush-type spring terminal, gold-plated
MountingIn-wall
Dimensions with grill (W x H x D)244 x 414 x 95 mm / 9.6 x 16.3 x 3.7 inches
Cut-out dimensions (W x H x D)220 x 390 x 95 mm / 8.7 x 15.4 x 3.7 inches
Weight3.1 kg / 6.8 lb
FinishMatte black
